Fast acting Mokveld on-off valves reduce the plant footprint and reduce cost during a plant modification. The extremely short closing time makes it possible to keep off-spec gas inside the existing plant area making the revamping more cost effective.
Fast acting Mokveld on-off valves reduce the plant footprint and reduce cost during a plant modification. The extremely short closing time makes it possible to keep off-spec gas inside the existing plant area making the revamping more cost effective.

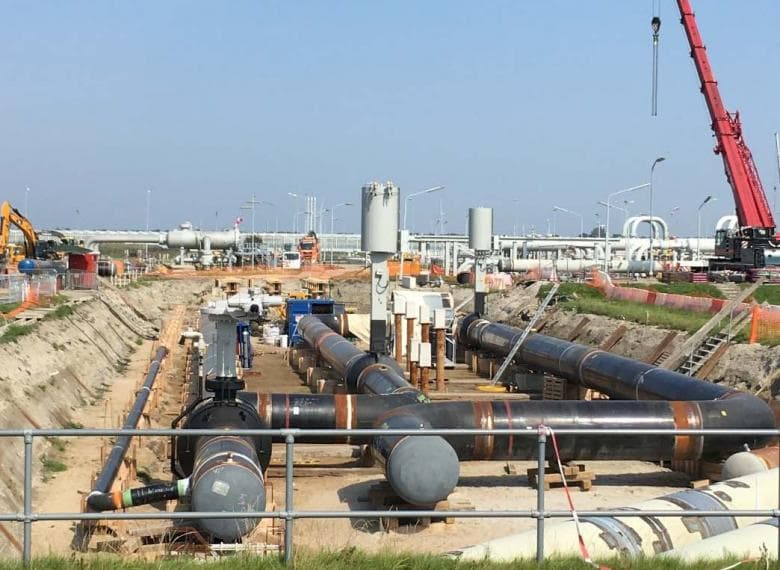

At the Wieringermeer location Gasunie blends high calorific gas with Nitrogen to obtain the Groningen Quality gas (G-Gas) with Mokveld control valves. A specific system continuously verifies the quality of the delivered gas.
A so-called Quality Shut-down Valve (QSV) prevents the delivery of off-spec gas.
Usually this system is relatively slow, the time between measurement and full closure of the valve can be 40-50 seconds, this means the gas has travelled at least 500 meters already. Therefore traditionally a large size plant is required to assure the off-spec gas does not leave the site.
To reduce the size of the plant Gasunie installed a Mokveld very fast closing QSV which reduced the length to approximately 150 meters.

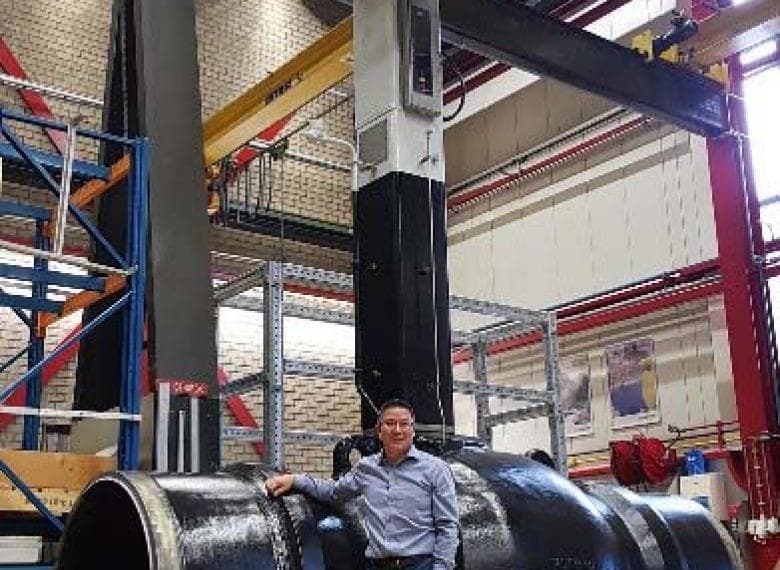

The 42 inch ASME 600 Lbs HIPPS like Mokveld axial flow on-off valve closes in 2 seconds with a very high reliability reducing the risk of the delivery of bad quality to an absolute minimum.
Read more about:
Near Zero Flaring with HIPPS
HIPPS product page
Axial on-off valve
Axial flow
In order to ensure you continue to benefit from valves that offer high capacity and safety as standard, we offer a range of modernisation services. For more information about our modernisation services, please contact your Mokveld support office or representative.
