Subsea axial check valve

An axial check valve is the preferred solution for critical non-return applications such as the protection of rotating equipment and systems where low pressure loss, stable operation and dynamic behaviour are essential.

<div class="c-ribbon c-ribbon--small"> <svg class="c-ribbon__image" xmlns="http://www.w3.org/2000/svg" x="0px" y="0px" viewBox="0 0 550.5 824.6"> <defs> <linearGradient id="gradient-1016441782" x1="0" x2="0" y1="0" y2="1"> <stop class="c-ribbon__top-gradient__top" offset="0.05" /> <stop class="c-ribbon__top-gradient__bottom" offset="0.5" /> </linearGradient> <linearGradient id="gradient-1915258299" x1="0" x2="0" y1="0" y2="1"> <stop class="c-ribbon__side-gradient__top" offset="0" /> <stop class="c-ribbon__side-gradient__bottom" offset="0.5" /> </linearGradient> </defs> <polygon class="c-ribbon__image__right" style="fill: url('#gradient-1915258299')" points="275.4,549.5 550.5,824.6 550.5,274.4 "/> <polygon class="c-ribbon__image__left" style="fill: url('#gradient-1915258299')" points="275.4,549.5 0.3,824.6 0.3,274.4 "/> <polygon class="c-ribbon__image__top" style="fill: url('#gradient-1016441782')" points="275.4,549.5 550.5,274.4 550.5,-0.7 0.3,-0.7 0.3,274.4 "/> </svg> <div class="c-ribbon__text"> <h3 class="c-ribbon__code">TKZ</h3> <p class="c-ribbon__category">Y</p> </div> </div>

Facts

Axial flow

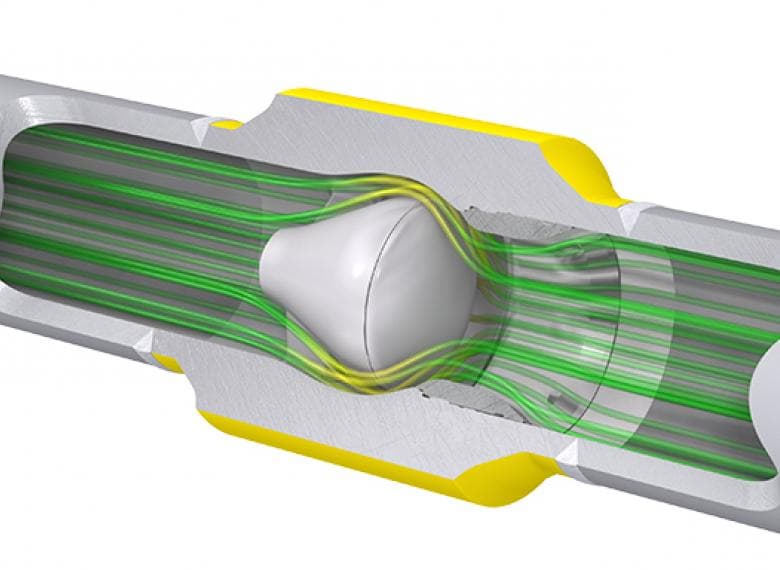

Streamlined flow path through full-port expanded body avoids turbulence and prevents erosion and vibration. Process downtime and maintenance costs are eliminated.

Low pressure drop

The full opening flow passage and high-pressure recovery of the venturi-shaped body result in very low pressure loss: reduced operating cost of pumps and compressors.

Easy opening

The low static pressure in the throat area is applied behind the disc and creates a pressure differential over the disc, resulting in easy opening.

Stability

Extremely stable during operation. The axial check valve responds smoothly to changes in flow and remains stable when it is supposed to be.

Non-slam operation

The spring-assisted design ensures ultra-fast closing without backflow and pressure surges, in critical applications such as multi-pump systems.

Tight shut-off

Tight shut-off is obtained by means of metal-to-metal sealing. This sealing is not affected by erosive flow.

Maintenance free

Internal construction is based on the application of sound basic mechanical engineering principles. Consequently, Mokveld subsea axial check valves do not require any maintenance.

Product Summary

Type designation
Subsea check or non-return valve
Model
TKZ-Y
Water depth
5000 m.
Scope
Sizes 2" - 24"
Rating ASME 150 - 2500 or API 3000 - 15 000
Higher pressure ratings on request
In preference to
Swing check valve (including controlled closure devices)
Dual-plate check valve
Piston check valve
Typical applications
Critical compressor / pump protection
Severe duty / no maintenance
Low pressure drop
Streamlined flow path through full port expanded body
Streamlined flow path through full port expanded body

Can we help?

If you would like to have more information about this product, please contact us. As experts in engineered valve systems, we are capable of providing reliable customer services and can support you with valve sizing and selection, process engineering and system lay-out and budget pricing.
