Axial check valve

An axial check valve is the preferred solution for critical non-return applications such as the protection of rotating equipment and systems where low pressure loss, stable operation and dynamic behaviour are essential.

<div class="c-ribbon c-ribbon--small"> <svg class="c-ribbon__image" xmlns="" x="0px" y="0px" viewBox="0 0 550.5 824.6"> <defs> <linearGradient id="gradient-1271432569" x1="0" x2="0" y1="0" y2="1"> <stop class="c-ribbon__top-gradient__top" offset="0.05" /> <stop class="c-ribbon__top-gradient__bottom" offset="0.5" /> </linearGradient> <linearGradient id="gradient-1769956053" x1="0" x2="0" y1="0" y2="1"> <stop class="c-ribbon__side-gradient__top" offset="0" /> <stop class="c-ribbon__side-gradient__bottom" offset="0.5" /> </linearGradient> </defs> <polygon class="c-ribbon__image__right" style="fill: url('#gradient-1769956053')" points="275.4,549.5 550.5,824.6 550.5,274.4 "/> <polygon class="c-ribbon__image__left" style="fill: url('#gradient-1769956053')" points="275.4,549.5 0.3,824.6 0.3,274.4 "/> <polygon class="c-ribbon__image__top" style="fill: url('#gradient-1271432569')" points="275.4,549.5 550.5,274.4 550.5,-0.7 0.3,-0.7 0.3,274.4 "/> </svg> <div class="c-ribbon__text"> <h3 class="c-ribbon__code">TKZ</h3> <p class="c-ribbon__category">Y</p> </div> </div>


Axial flow

Streamlined flow path through full-port expanded body avoids turbulence and prevents erosion and vibration. Process downtime and maintenance costs are eliminated.

Low pressure loss

The full opening flow passage and high-pressure recovery of the venturi-shaped body result in very low pressure loss: reduced operating cost of pumps and compressors.

Tight shut-off

Tight shut-off is obtained by means of metal-to-metal sealing between the disc and the seat. This sealing is not affected by erosion and deformation of material (like with a soft seal).

Low cracking pressure

The stability of a compressor system during startup benefits from a low cracking pressure. This is achieved with a large disc that has identical effective pressure areas on both sides (line contact sealing).

Easy opening and stable operation

The low static pressure in the venturi-shaped throat area creates a pressure differential over the disc, resulting in easy opening. The axial check valve responds smoothly to changes in flow and remains stable when it is supposed to be.

Non-slam operation

The spring-assisted design ensures ultra-fast closing with virtually no backflow and pressure surges in critical applications such as multi-pump systems or LNG trains.

Maintenance free

Internal construction is based on the application of sound basic mechanical engineering principles. Consequently, Mokveld axial check valves do not require any maintenance.

Reliable performance prediction

Both the pressure drop and the dynamic behaviour can be predicted with great accuracy, based on full-scale laboratory flow tests and a mathematical model developed in cooperation with a recognized fluid hydraulics laboratory.

Product Summary

Type designation
Solid disc, non-slam nozzle check valve
Sizes 2" - 84", Rating class ASME 150 - 2500 or API 3000 - 10000, Higher pressure ratings on request
Oil and Gas
In preference to
Swing check valve (including controlled closure devices)
Dual-plate check valve
Piston check valve
Typical applications
Transmission pipeline compressor discharge
LNG compressor train
Cooling water system (Ethylene, LNG)
Multiphase pumping
Subsea pump and flowline application
Hydropower and Water
In preference to
Swing check valve
Dual-plate check valve
Ring disc check valve
Piston check valve
Silent check valve
Tilting or Pivoting disc check valve
Typical applications
Waterworks and transmission systems, mains, loops, crossovers and tunnels
Pump discharge
Water hammer prevention
Potable and raw water
Cooling water systems

Video 72" check valve

Manufacturing a 72" Axial check valve, made to customer specifications.

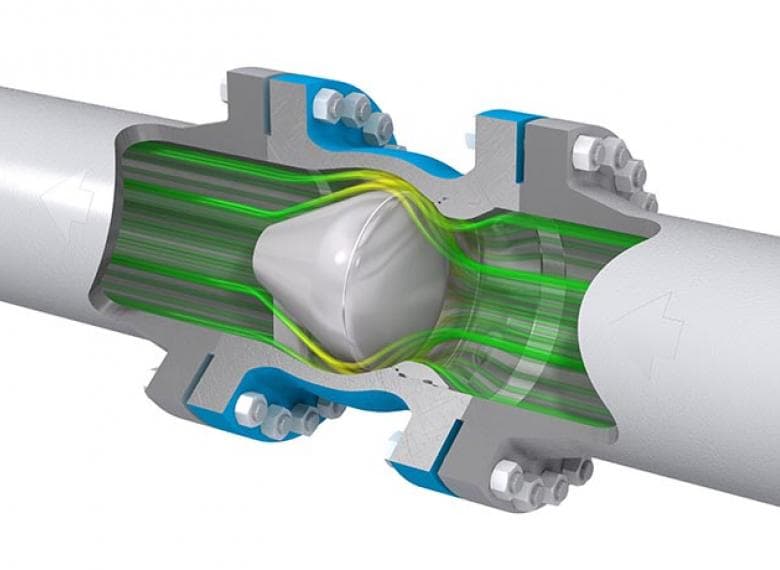

Streamlined flow path through full-port expanded body
Streamlined flow path through full-port expanded body

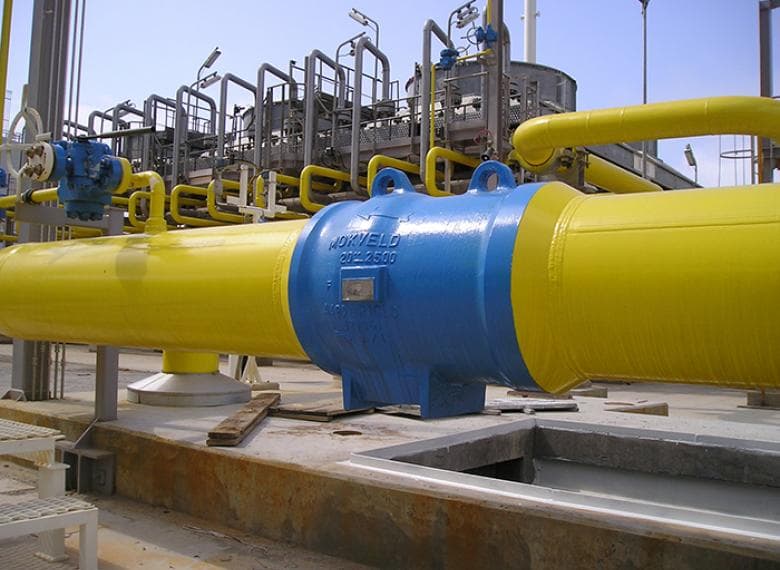

Axial check valve, Russia
Axial check valve, Russia

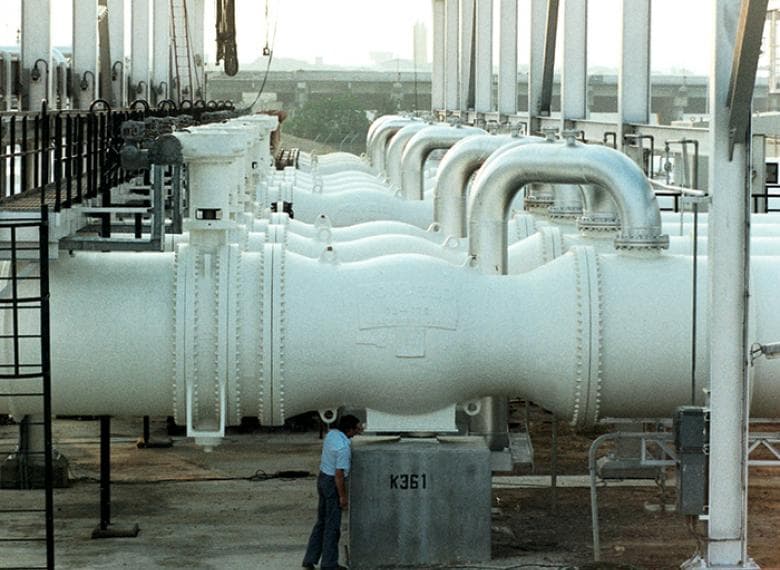

Axial check valve, 72"
